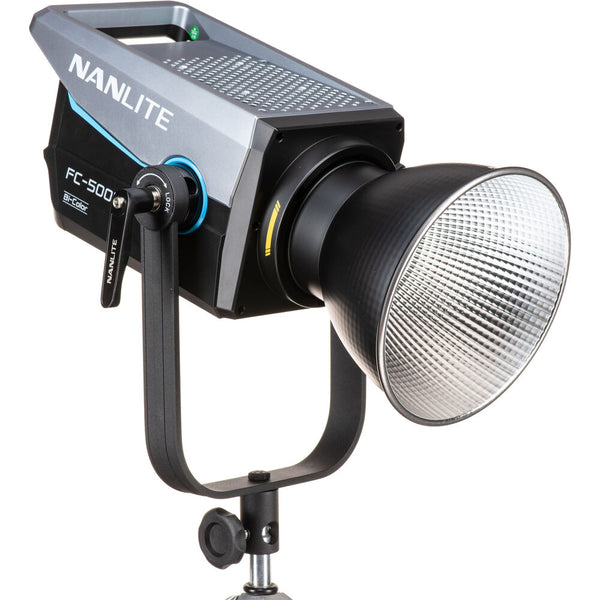

Nanlite FC-500B Bi-Color LED Spotlight

The Nanlite FC-500B is a 520W power-consumption bi-color LED spotlight designed for film, broadcast, video production and photography. With an adjustable colour temperature range of 2700–6500K, it delivers up to 65,640 lux at 3.3 feet with the included reflector at 5600K. Featuring CRI 96 colour accuracy, multiple wireless and wired control options, and a Bowens S accessory mount, this AC-powered fixture offers flexible lighting control for professional production environments.

Product Highlights

• Bi-colour LED spotlight for film, broadcast and video production
• 2700–6500K adjustable colour temperature
• Up to 65,640 lux at 3.3 feet with reflector at 5600K
• CRI 96 and TLCI 98 colour accuracy
• Bluetooth, 2.4GHz wireless and DMX/RDM control
• 0–100% dimming with 0.1% increments
• 12 built-in lighting effects
• Bowens S mount for compatible light modifiers
• Smart fan modes for noise-conscious shooting
• 360° rotating yoke with 5/8-inch receiver
• Includes reflector, power supply and carry case

Features

Bi-Color Output with Advanced Features

The Nanlite FC-500B offers an adjustable colour temperature range of 2700–6500K, supporting both daylight and tungsten lighting. Maximum output mode delivers full power, while constant output mode maintains consistent intensity across the CCT range. Brightness can be adjusted from 0 to 100% in precise 0.1% increments for fine control during video and photography shoots.

At 5600K, the FC-500B produces up to 65,640 lux at 3.3 feet with the included reflector, providing powerful illumination for professional lighting setups.

Multiple Control Options

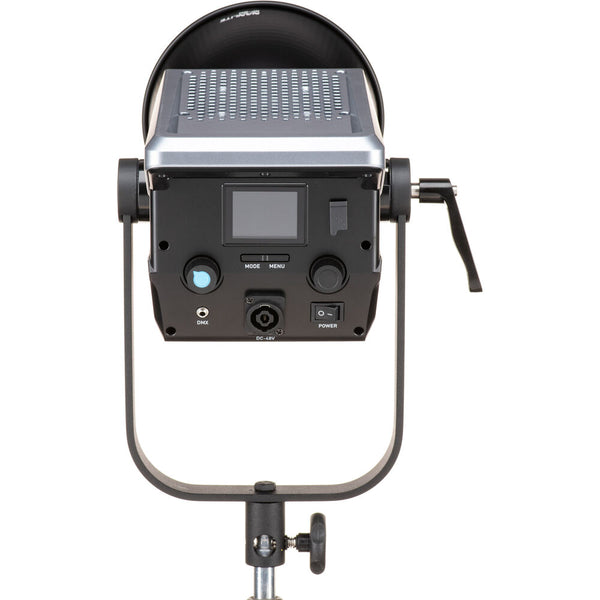

The FC-500B provides convenient onboard controls with local adjustment knobs and a 2-inch screen. It can also be controlled remotely using Bluetooth through the NANLINK app, available for Android and iOS devices.

For additional wireless control, the fixture supports compatible 2.4GHz accessories, including the separately available WS-TB-1 transmitter and WS-RC-C2 remote control. A locking metal 3.5mm DMX/RDM port supports integration into professional DMX-controlled lighting systems.

12 Practical Lighting Effects

The Nanlite FC-500B features 12 built-in customizable lighting effects that can be saved as presets through the NANLINK app. Effects include CCT loop, INT loop, flash, pulse, storm, TV, paparazzi, candle/fire, bad bulb, firework, explosion and welding.

Smart Fan Modes

The built-in cooling fan features smart fan modes designed to accommodate different on-set sound requirements. These modes help manage cooling while supporting quieter shooting environments where audio recording is important.

AC Operation

The FC-500B operates using AC power and includes a power supply compatible with 100–240 VAC, 50/60 Hz input. The separate light head and power supply support a practical setup, while the power supply's safety strap allows it to be hung from a separately available light stand.
