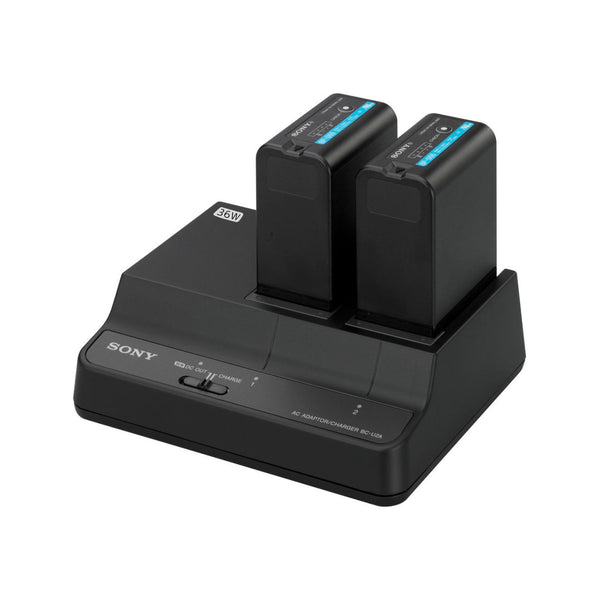

Sony BC-U2A Two-Channel Battery Charger
Sony BC-U2A Two-Channel Battery Charger/AC Adaptor
The Sony BC-U2A is a two-channel battery charger and AC adaptor for BP-U90, BP-U60, BP-U60T and BP-U30 lithium-ion batteries, with simultaneous charging and 12 V DC power output.
Product Highlights
- Simultaneously charges two BP-U90, BP-U60/U60T or BP-U30 batteries
- Built-in AC adaptor
- 12 V DC power output while charging one battery
- Portable design
- AC 100–240 V, 50/60 Hz power requirements
- 89 W power consumption
- 36 W, 12 V/3.0 A DC supply
- 16.4 V charging voltage
- Approx. 620 g mass plus DC output cable
- IEC62368-1 safety standard compliant
Features
Charges two BP-U90/U60/U60T/U30 batteries
The BC-U2A can simultaneously charge two BP-U90, BP-U60/U60T or BP-U30 lithium-ion batteries at high speed.
Built-in AC adaptor provides 12 V DC power output while charging one battery
The BC-U2A provides 12 V DC power output through its DC output cable, allowing direct power to a camcorder while charging one battery simultaneously.
Portable design for ease of use
The BC-U2A has a mass of 620 g (1 lb 6 oz) and dimensions of 177 × 53.2 × 137 mm (7 × 8 1/8 × 5 1/2 inches).
| Specification | Details |
|---|---|
| Power requirements | AC 100–240 V, 50/60 Hz |
| Power consumption | 89 W |
| DC supply | 36 W, 12 V / 3.0 A |
| Charging voltage | 16.4 V |
| Operating temperature — DC supply | -5°C to +45°C |
| Operating temperature — Charging | 0°C to +45°C |
| Approx. charge time — BP-U90 | 190 minutes |
| Approx. charge time — BP-U60/U60T | 150 minutes |
| Approx. charge time — BP-U30 | 130 minutes |
