Aputure amaran F22c LED Mat
Aputure amaran F22c 200W RGBWW Flexible LED Mat

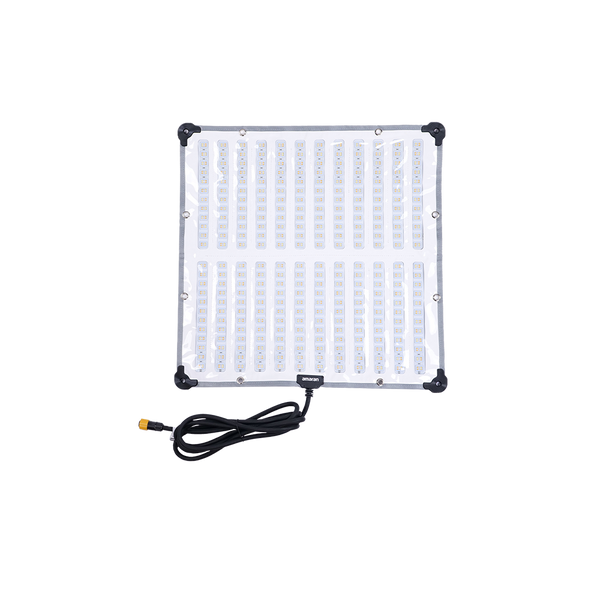

The Aputure amaran F22c is a 2’x2’ RGBWW flexible LED mat designed for filmmakers, videographers, content creators, and photographers. It delivers up to 200W of output, with 6,420+ lux at 1 meter and a tunable CCT range of 2,500K to 7,500K. Its full-color control, lightweight design, improved X Bracket, and flexible power options make it suitable for a variety of creative lighting setups.
Product Highlights
- 2’x2’ RGBWW flexible LED mat
- Up to 200W light output
- 2,500K–7,500K tunable CCT
- 360° HSI full-color control
- Green-magenta adjustment
- 46 color gel presets
- 15 built-in lighting effects
- 4 user-configurable preset buttons
- Improved X Bracket with integrated baby pin
- V-Mount or Gold-Mount battery compatibility
Features
FULL-COLOR FLEXIBLE MAT
The Aputure amaran F22c is a 2’x2’ ultra-lightweight flexible LED mat that combines strong light output with high color-rendering performance. Designed for indie filmmakers, videographers, content creators, and photographers, it offers a versatile lighting solution for both white light and creative color effects.
2X2 FORM FACTOR
The ultra-light, ultra-thin fabric light is suitable for travel, tight spaces, and a variety of shooting environments. Its traditional 2’x2’ form factor provides a broad surface area for soft light, while its compact, foldable design makes it convenient to transport and useful as a close-up key light.
FULL COLOR CONTROL
The Aputure amaran F22c features an integrated RGBWW chipset for creative lighting control. Adjust the color temperature from 2,500K to 7,500K with green-magenta adjustment, use 360° HSI control, or choose from 46 color gel presets. The light also includes 15 built-in lighting effects and 4 user-configurable preset buttons.

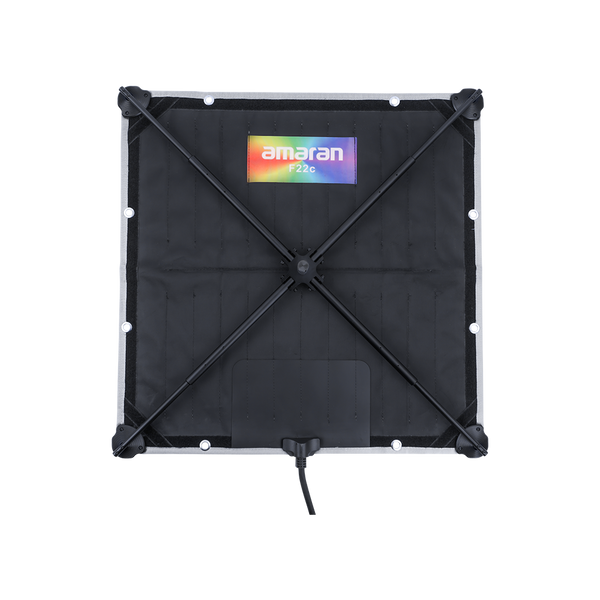

ALL-NEW X BRACKET
The improved X Bracket provides enhanced rigidity and security for the flexible light mat. Its support tubes feature a two-stage, spring-loaded design to help keep the mat taut and the bracket securely attached. The bracket is easy to set up, packs compactly, and includes an integrated knurled baby pin for mounting.
POWER FLEXIBILITY
The Aputure amaran F22c control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V, 26V, 28.8V, and 48V batteries. Full output can also be achieved using the AC power supply, providing flexible options for portable and AC-powered lighting setups.
| Specification | Details |
|---|---|
| CCT | 2500K–7500K |
| CRI | ≥95 |
| TLCI | ≥97 |
| CQS | ≥96 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 102 |
| SSI (P3200) | ≥83 |
| SSI (D56) | ≥74 |
| Color Chipset | Red, Green, Blue, Warm White, Cool White |
| Beam Angle (Control Grid) | 45° |
| Max Power Output | ≤200W |
| Max Power Consumption | ≤240W |
| Operating Current | 5A |
| AC Power Supply | 48V DC |
| D-Tap Battery | 12–28.8V DC |
| Battery Compatibility | 16.8V, 26V, 28.8V full power output |
| DC Input | (3m) DC self-locking |
| AC Power Cable | Self-locking IEC C13 AC power cable (4m) |
| Operating Temperature | -10°C to 40°C / -4°F to 113°F |
| Control Methods | On-board, Sidus Link App, DMX |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m / 262.5ft |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
