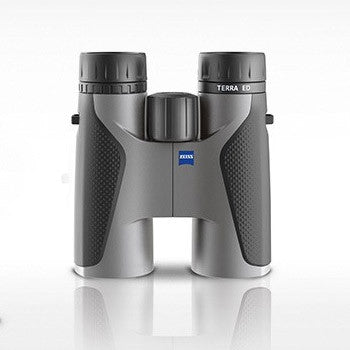

TERRA ED 8x32
The ZEISS TERRA ED 8x32 guarantees razor-sharp images thanks to its precise focus mechanism and 8x magnification, even when the image is only fleeting. With its compact size and weighing just 510 g, it's a comfortable fit for your hand. With a nearly indestructible casing and its excellent ergonomics, the TERRA ED 8x32 is the perfect all-round solution for every use.
Technical data
| Magnification | 8 x |
| Effective Lens Diameter | 32 mm |
| Exit Pupil Diameter | 4 mm |
| Twilight Factors | 16 |
| Field of View at 1000m | 135 m |
| Apparent Field of View | 61 ° |
| Close Focus | 1.6 m |
| Diopter Adjustment Range | +3 | -3 dpt |
| Pupil Distance | 56 - 74 mm |
| Eye Relief | 16.5 mm |
| Lens Type | ED-Type |
| PrismSystem | Schmidt-Pechan |
| Lens Coating | Hydrophobic ZEISS MC |
| Water Resistance | 100 mbar |
| Nitrogen Filling | yes |
| Functional Temperature in °C | -15 | +60 °C |
| Height | 125 mm |
| Width at an eye width of 65 mm |
117 mm |
| Weight in Use | 510 g |
| Order Number | 523203 |
