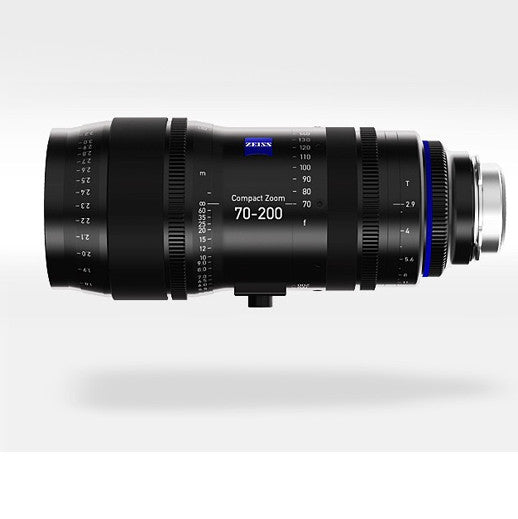

Compact Zoom CZ.2 Lenses Absolute flexibility and truly stellar performance.
Lightweight and compact zoom lenses featuring the Interchangeable Mount System (PL, EF, F, MFT, E).
The new Compact Zoom CZ.2 lenses are as versatile as they are powerful and incorporate features never seen before on lenses of this kind. They are handy, compact, ready for 4k and even offer full-frame coverage. With their zoom lengths of 28-80 and 70-200 mm, they give you a wide range of creative options.
Their compact size and light weight make them the ideal companions for even the most ambitious applications, including handheld, Steadicam and projects in confined spaces. And thanks to their robust, cine-style housing (which also allows for the use of a follow-focus system), their full-frame coverage and interchangeable mounts, they will be reliable partners for years to come.
- Interchangeable mount
- Full-frame coverage (36 x 24 mm)
- No focus shift over the zoom range
- Robust cine-style housing
- Circular shape of iris
- Great flare suppression
- Calibrated focus scale
- 4K capability
- Colormatched with all ZEISS Prime lenses.
Technical Data
| Compact Zoom CZ.2 | |||
|---|---|---|---|
| Aperture range | T 2.9 to T 22 | T 2.9 to T 22 | T 2.9 to T 22 |
| Focal range | 15–30 mm | 70–200 mm | 28–80 mm |
| Close focus distance (1) | 0.55 m / 1’10” | 1.52 m / 5’ | 0.83 m / 2’8” |
| Horizontal angle of view | |||
| Full-Frame (2) | 100-62° | 29–10° | 66–25° |
| APS-H (3) | 90–54° | 24–9° | 57–21° |
| Super 35 (4) | 79–46° | 20–7° | 48–18° |
| Normal 35 (5) | 72–41° | 18–6° | 43–16° |
| APS-C (6) | 73–42° | 18–6° | 43–16° |
| MFT (7) | 59–33° | 14–5° | 34–12° |
| Length (8) | 198 mm / 9.92” | 250 mm / 9.84” | 196 mm / 7.72” |
| Front diameter | 114 mm / 4.49” | 95 mm / 3.7” | 95 mm / 3.7” |
| Weight | 2.6 kg / 5.7 lbs | 2.8 kg / 6.2 lbs | 2.5 kg / 5.5 lbs |
